Why Digital Mapping Matters in AutoCAD Workflows
Across planning, architecture, engineering and surveying, AutoCAD remains the backbone of technical drawing in the UK. Yet despite its ubiquity, many projects are delayed—or rejected—because base mapping has been used incorrectly.
Ordnance Survey (OS) data underpins most UK site drawings, but using it properly inside AutoCAD is not just a technical issue. It is a licensing, accuracy and compliance issue.
This guide explains how UK professionals use OS mapping correctly in AutoCAD, common mistakes to avoid, and how digital mapping from MapServe® fits into compliant, efficient workflows.
Understanding Ordnance Survey Data in CAD Context
Vector vs Raster Mapping
OS mapping supplied for AutoCAD typically falls into two categories:
-
Vector data (DWG/DXF): ideal for editable linework, snapping, measurement and overlays
-
Raster data (PDF/PNG): fixed images, best for reference but not measurement-critical tasks
For planning drawings, site layouts and engineering design, vector mapping is almost always required.
MapServe® supplies OS vector data already structured for CAD use, eliminating the need for manual conversion or tracing—one of the most common sources of error.
Coordinate Systems and Real-World Accuracy
UK OS mapping is supplied in the British National Grid (EPSG:27700). Problems arise when users:
-
Import data into drawings set to local or arbitrary coordinates
-
Scale drawings manually rather than preserving true units
-
Combine OS mapping with survey data in mismatched coordinate systems
Correct practice is simple but often ignored:
-
Set AutoCAD units to metres
-
Insert OS data at 1:1 scale
-
Maintain real-world coordinates throughout the project
MapServe®’s AutoCAD-ready downloads are already scaled and aligned for direct insertion.
Licensing: The Most Common Compliance Failure
Why OS Licensing Matters
Ordnance Survey data is licensed—not owned—and misuse can invalidate planning submissions or professional reports.
Common breaches include:
-
Re-using mapping across multiple sites
-
Removing copyright notices
-
Issuing drawings to third parties without the correct licence
-
Using OS data sourced from unverified online downloads
Local Planning Authorities increasingly check mapping attribution. Errors can lead to invalid applications, not just delays.
How MapServe® Simplifies Licensing
MapServe® provides:
-
Project-specific OS mapping
-
Correct copyright text and attribution
-
Data suitable for planning, design and submission
This removes ambiguity for consultants, architects and developers who need certainty that drawings are compliant.
Layering and Data Management in AutoCAD
Why OS Layer Structure Matters
Raw OS datasets can include hundreds of layers, many irrelevant to early-stage design. Poor layer management leads to:
-
Overcomplicated drawings
-
Printing errors
-
Slower performance
Professional users typically:
-
Freeze non-essential layers
-
Use OS data as a locked base
-
Overlay proposal information separately
MapServe®’s CAD mapping is cleaned and organised, making it easier to integrate into standard office CAD templates.
Best Practice: Keep Base Mapping Read-Only
A common mistake is editing OS linework directly. This:
-
Breaches licence terms
-
Makes future updates impossible
-
Creates ambiguity over what is surveyed vs proposed
Correct workflow:
-
Insert OS mapping on locked layers
-
Overlay survey data, designs and annotations independently
-
Reference OS data, don’t modify it
Planning Submissions: What Councils Expect
Local authorities typically require:
-
Up-to-date OS base mapping
-
Correct scale (1:1250 or 1:2500 for site location plans)
-
Clear red-line boundaries
-
Accurate north points and legends
Using outdated or incorrectly scaled mapping is one of the fastest ways to receive an “invalid” notice.
MapServe® mapping is supplied at the correct scales, reducing risk at submission stage.
Integrating OS Mapping with Surveys and BIM
Survey Overlay
Topographical surveys often use OS mapping as contextual reference. Problems arise when:
-
Survey data is supplied in local grid
-
OS data is in national grid
-
Alignment is forced manually
Best practice is to:
-
Ensure surveys are tied to OS coordinates
-
Use OS mapping as contextual backdrop
-
Confirm alignment using known features (kerbs, building corners)
AutoCAD vs BIM Environments
While BIM tools like Revit are growing, AutoCAD remains dominant for:
-
Early feasibility
-
Planning drawings
-
Infrastructure layouts
OS data from MapServe® can be:
-
Used directly in AutoCAD
-
Exported or referenced into BIM workflows
-
Retained as a legal base map throughout the project lifecycle

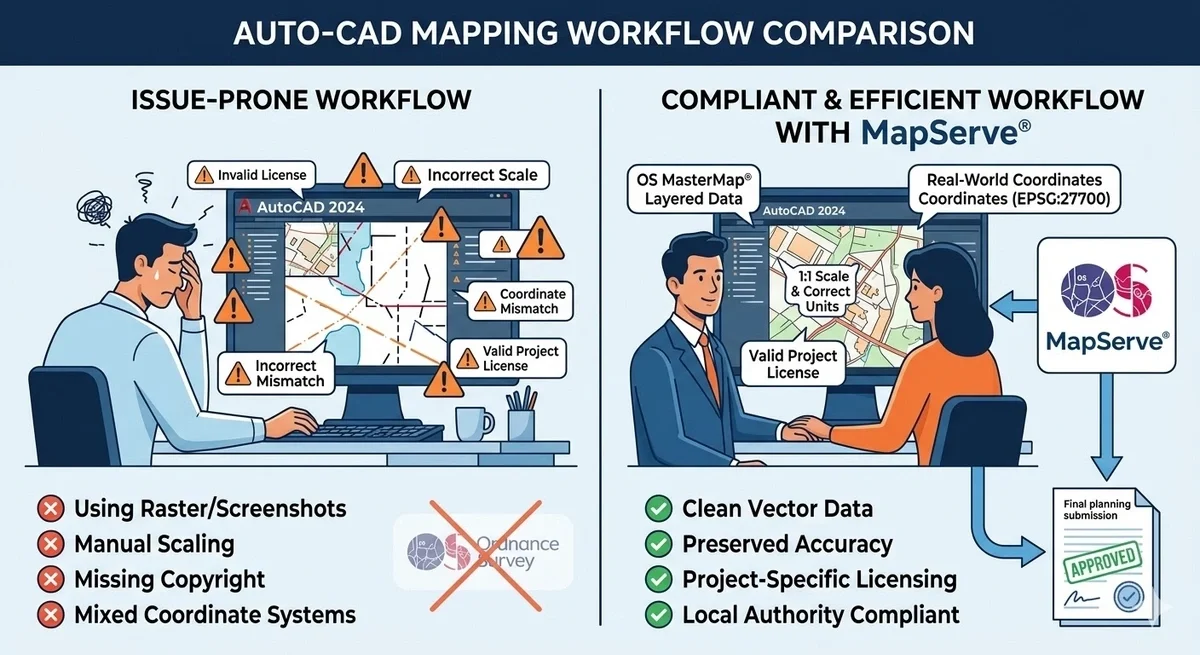

Common AutoCAD Mapping Mistakes (and How to Avoid Them)
-
Using screenshots or PDFs as base maps
→ Not measurable, not compliant -
Scaling OS mapping to “fit” a site
→ Introduces distortion and liability -
Stripping copyright text
→ Breach of licence -
Mixing coordinate systems
→ Misalignment with surveys and designs -
Re-using mapping on multiple projects
→ Not permitted under standard licences
MapServe®’s product structure is designed specifically to prevent these issues.
Why Professionals Choose MapServe® for AutoCAD Mapping
UK professionals choose MapServe® because it provides:
-
AutoCAD-ready OS vector data
-
Clear, project-specific licensing
-
Fast delivery for tight planning deadlines
-
Mapping suitable for architects, engineers, planners and developers
Rather than wrestling with raw datasets or uncertain downloads, users can focus on design and compliance.
Final Thoughts
Digital mapping is foundational to almost every UK planning and design project. When used correctly in AutoCAD, Ordnance Survey data provides accuracy, credibility and compliance. When used incorrectly, it creates risk.
The difference is not AutoCAD itself—it’s the quality, licensing and preparation of the mapping.
Using properly supplied OS data from MapServe® ensures professionals start every project on solid ground.
